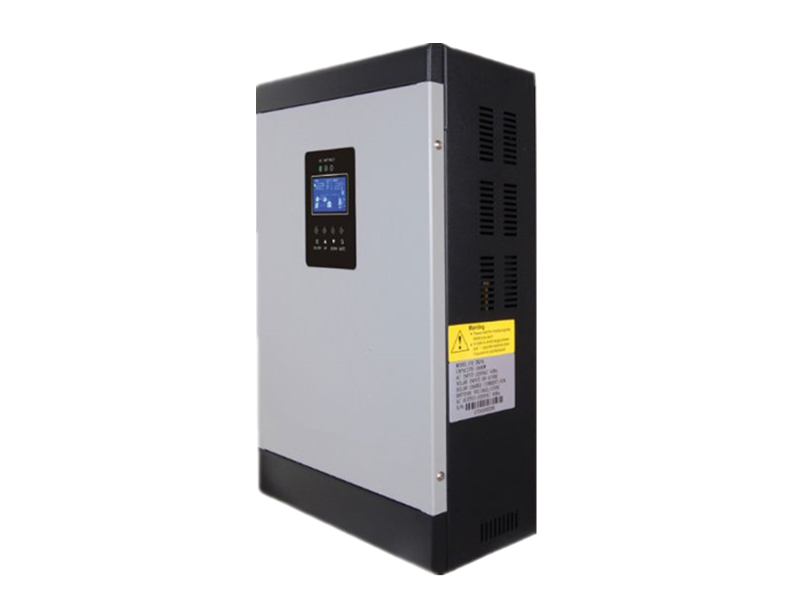

5000VA Hybrid Inverter With MPPT Controller 80A

Products » Hybrid Inverter » Hybrid Inverter MPPT

Name :

5000VA Hybrid Inverter With MPPT Controller 80A

Color:

Silver White

Size:

140 x 295 x 540mm

Material:

Iron shell

[ Close ]

Description:

Specification

Model	SK-1000VA-24V25A	SK-3000VA-24V25A	SK-3000VA-24V60A	SK-5000VA-48V80A
Rated Power	1000VA	3000VA	3000VA	5000VA
Input
Voltage	230VAC
Selectable Voltage Range	170-280VAC (For Personal Computers) / 90-280VAC (For Home Appliances)
Frequenc Range	50Hz/60Hz (Auto Sensing)
Output
AC Voltage Regulation (Batt.Mode)	230VAC ± 5%
Peak Power	2000VA	6000VA	6000VA	10000VA
Efficiency(Peak)	93%
Transfer Time	10ms (For Personal Computers) / 20ms (For Home Appliances)
Waveform	Pure Sine Wave
Battery & AC Charger
Battery Voltage	24VDC	24VDC	24VDC	48VDC
Floating Charge Voltage	27VDC	27VDC	27VDC	54VDC
Overcharge Protection	31VDC	31VDC	31VDC	60VDC
Maximum Charge Current	10A/20A	20A/30A	20A/30A	50A/60A
PV Panel & Solar Charge Controller
MAX PV Array Power	600W	600W	1500W	4000W
MPPT Range @ Operating Voltage	30VDC-66VDC	30VDC-66VDC	30VDC-115VDC	60VDC-115VDC
Maximum PV Array Open Circuit Voltage	75VDC	75VDC	145VDC	145VDC
Maximum Charge Current	25A	25A	60A	80A
Maximum Efficiency	98%
Standby Power Consumpsion	2W
Pmax. Generated From Solar Charger	25Amp 600W	25Amp 600W	60Amp 1500W	80Amp 4000W
Best Panel Configuration	500Wp (250Wpx2pcs)	500Wp (250Wpx2pcs)	1500Wp (250Wpx6pcs)	4000Wp (250Wpx16pcs)
Operating Environment
Humidity	5% to 95% Relative Humidity(Non-condensing)
Operating Temperature	0°C-55°C
Storage Temperature	-15°C-60°C
Physical
Dimension	128x272x355mm	128x272x355mm	140x295x540mm	140x295x540mm
Net weight	7.4Kg	8Kg	10Kg	13.5Kg
Gross weight	9.5Kg	10.5Kg	12Kg	15Kg

Features

1.Perfect pure sine waveform output (specially designed to start up inductive loads,such as refrigerator,motor,pump,compressorand laser printer as well as electronic loads like TV,computer,power tool,etc.)

2.Built-in MPPT solar charge controller.

3.Built-in AC charger.

4.Selectable AC input voltage:170V-280V / 90V-280V.

5.The frequency 50Hz / 60Hz isauto sensing.

6.Cold start functionality (be able to give output with full load connected without AC mains present.)

7.AC and solar input priority can be manually configurated.

8.Compatible to AC mains input and generator voltage input.

9.Equipped with MPPT solar charge controller to maximize and regulate DC power from the solar array for charging the battery bank.

10.Over voltage,undervoltage,over current,overload,over temperature and short circuit protection.

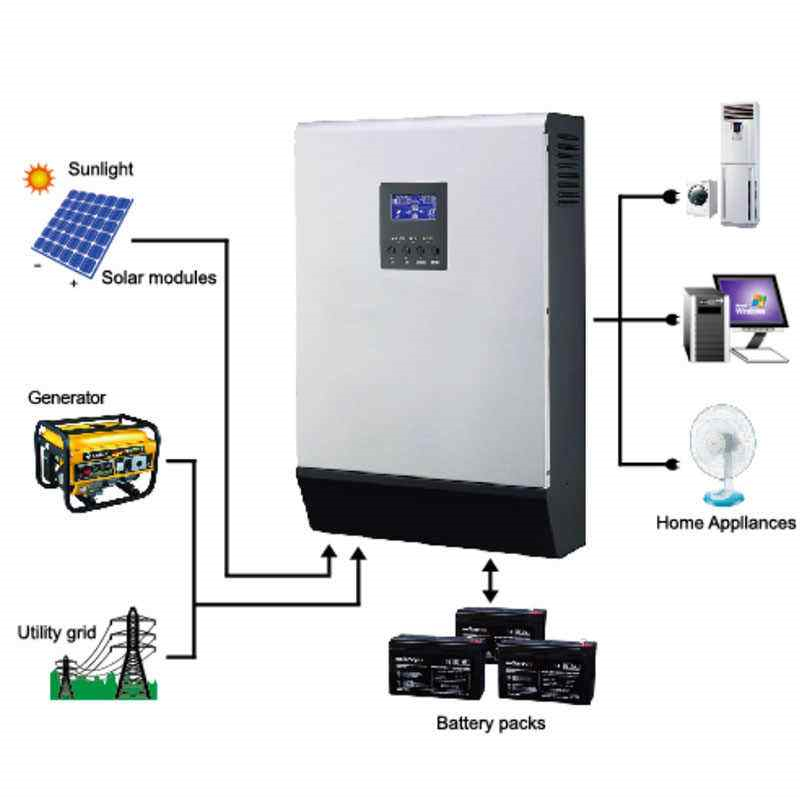

Application

Can be widely used for solar energy,wind energy,ship,satcom equip communication,water pump,microwave oven,squeezer,air-condition,fridge,mower,soybean milk maker,etc.
