5.5KW Hybrid Solar Inverter DC48V to AC230V

Products » Hybrid Inverter » Hybrid Inverter MPPT

Name :

5.5KW Hybrid Solar Inverter DC48V to AC230V

Color:

White

Size:

452 x 303 x 138mm

Material:

Aluminum alloy shell

[ Close ]

Description:

Specification

Model	SKN-3500W-24VP	SKN-5500W-48VP
Rated Power	3500W	5500W
Input
Voltage	230VAC
Selectable Voltage Range	170-280VAC (For Personal Computers)
	90-280VAC (For Home Appliances)
Frequency Range	50Hz / 60Hz (Auto Sensing)
Output
AC Voltage Regulation (Battery Mode)	230VAC ± 5%
Peak Power	7000W	11000W
Efficiency (Peak) PV to INV	98%
Efficiency (Peak) Battery to INV	94%
Transfer Time	10ms (For Personal Computers) / 20ms (For Home Appliances)
Waveform	Pure Sine Wave
Battery & AC Charger
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum Charge Current	80A	80A
PV Panel & Solar Charge Controller
Maximum PV Array Power	5000W	6000W
MPPT Range @ Operating Voltage	120-450VDC
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Charge Current	100A	100A
Maximum Efficiency	98%
Operating Environment
Humidity	5%-95% Relative Humidity (Non-condensing)
Operating Temperature	-10°C-50°C
Storage Temperature	-15°C-60°C
Physical
Cooling Type	By Cooling Fan
Communication Interface	Remove LCD / RS232 / GPRS / Wifi (Optional)
Dimension	452 x 303 x 138mm
Net weight	11.5Kg	12.5Kg
Gross weight	12.5Kg	13.5Kg

Features

1. High efficiency pure sine wave inverter (output power factor =1.0).

2. High PV input voltage range (120-500VDC).

3. Built-in 100A MPPT solar controller.

4. Built-in remote LCD display.

5. Smart battery charge design to optimize battery life.

6. Inverter can run without battery.

7. Built-in anti-dusk kit for harsh environment.

8. Built-in cooling fan.

9. Wifi & GPRS available for IOS and Android.

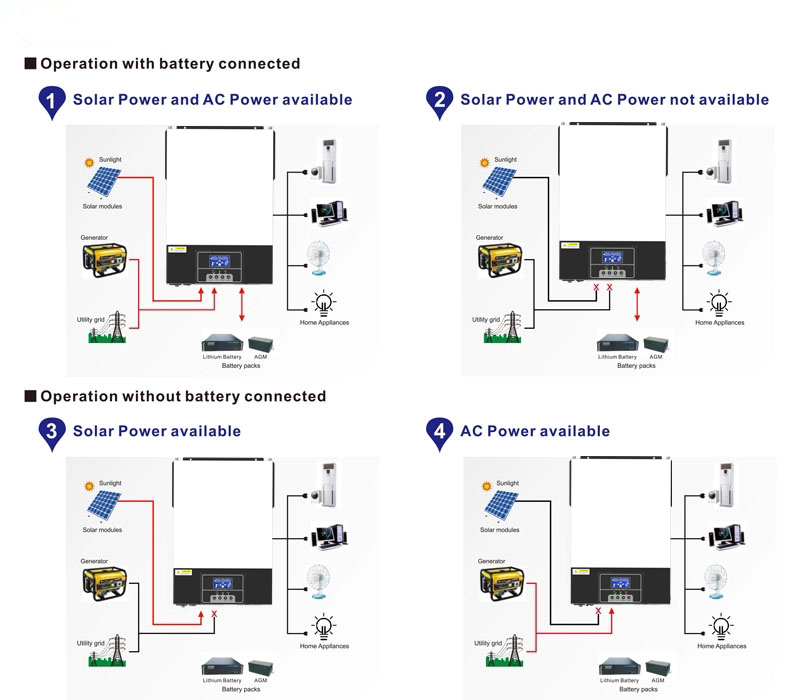

Application & System Diagram

Can be widely used for solar energy, wind energy, ship, satcom equip communication, water pump, microwave oven, squeezer, air-condition, fridge, mower, soybean milk maker, etc.
