192V 15000W Power Frequency UPS Inverter

Products » Power Frequency UPS Inverter » 192V Inverter

  • Name :

    192V 15000W Power Frequency UPS Inverter

  • Color:

    Blue

  • Size:

    420 x 280 x 625mm

  • Material:

    Iron

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-15000WPF Series

    Rated Power

    15000W

    Peak Power

    30000W

    DC Input Voltage

    192V

    AC Input

    Voltage

    220V±35% / 110V±35%

    Frequency

    50Hz±3% / 60Hz±3%

    AC Output

    Voltage

    220V±10% / 110V±10%

    Frequency

    50Hz±1% / 60Hz±1%

    Charging

    Charging Current

    0~20A

    Charging Time

    According to the battery capacity and quantity

    Charging Protection

    Automatic detection, charging and discharge protection,    intelligent management

    Display

    Display Mode

    LCD

    Display Information

    Input voltage, output voltage, output frequency, battery capacity, load condition, status information

    Intelligent Control

    With auto switch charger

    Output Waveform

    Pure sine wave, THD≤3

    Transfer Efficiency

    ≥93%

    Overload Capacity

    Over 120% load auto off in 60 seconds, Over 130% load auto off in 10 seconds

    Transfer Time

    The mains supply switch to inverter output time: ≤5ms

    Switch from inverter to mains supply time: ≤5ms

    Protection Function

    Overload,short-circuit,over-voltage,low-voltage,overtemperature, reverse polarity protection

    Working Condition

    Temperature

    -10℃60℃

    Humidity

    10%90%

    Altitude

    ≤4000m

    Size

    420 x 280 x 625mm

    Weight

    130Kg


    Features

    1.High-end chip,high-performance CPU,improve the working reliability.
    2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse polarity protection.
    3.Sound alarm,with frequency-conversion cooling fan.
    4.Soft-start function,increase loading capacity.


    Application

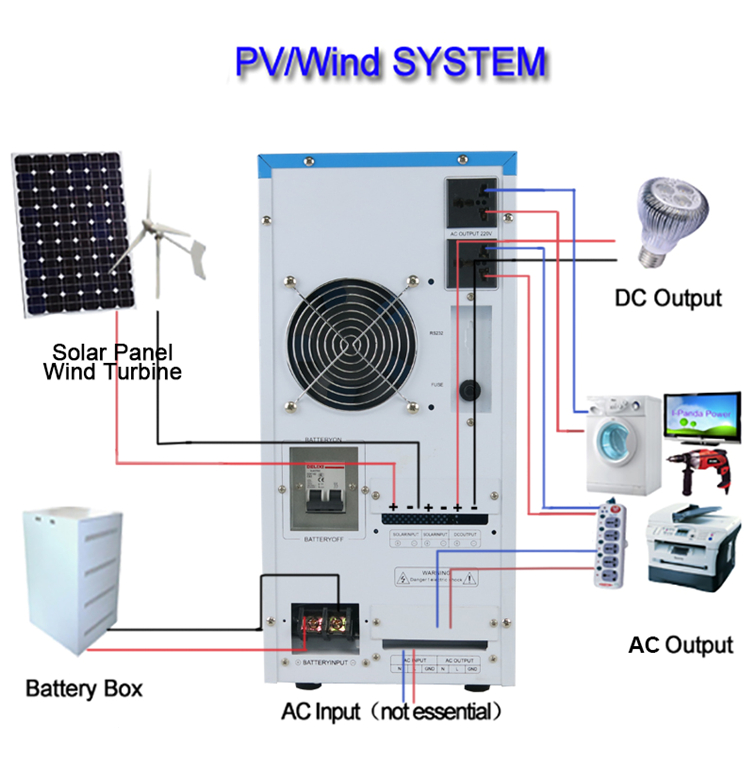

    Can be widely used for solar energy,wind energy,ship,satcom equip communication,water pump,microwave oven,squeezer,air-condition,fridge,mower,soybean milk maker,etc.
