24V 1000W Power Frequency UPS Inverter

Products » Power Frequency UPS Inverter » 24V Inverter

Name :

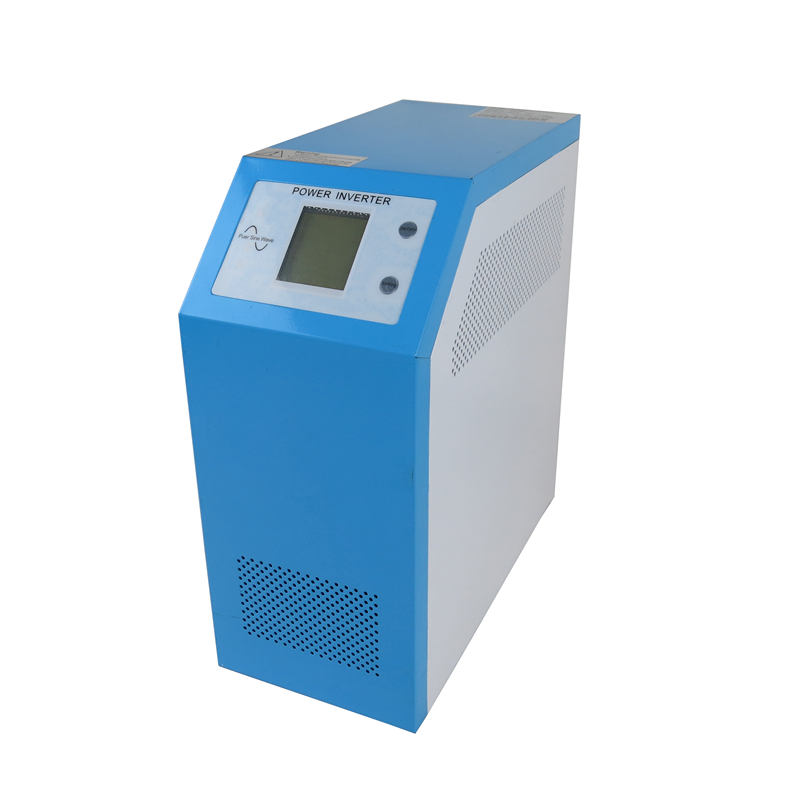

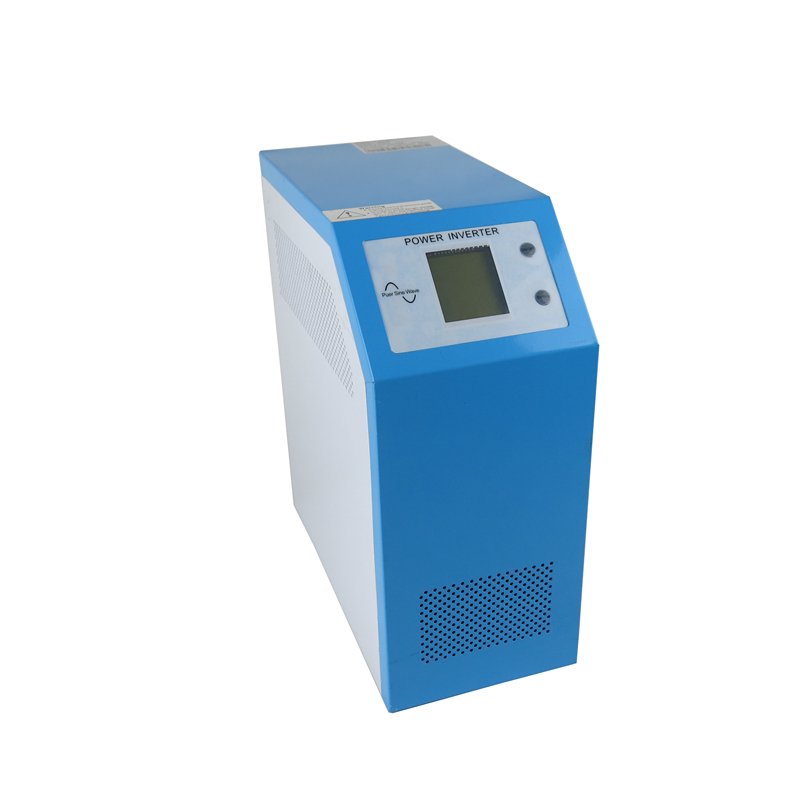

24V 1000W Power Frequency UPS Inverter

Color:

Blue

Size:

335 x 165 x 375mm

Material:

Iron

[ Close ]

Description:

Specification

Model			SK-1000WPF Series
Rated Power			1000W
Peak Power			2000W
DC Input Voltage			24V
AC Input	Voltage		220V±35% / 110V±35%
	Frequency		50Hz±3% / 60Hz±3%
AC Output	Voltage		220V±10% / 110V±10%
	Frequency		50Hz±1% / 60Hz±1%
Charging	Charging Current		0~15A
	Charging Time		According to the battery capacity and quantity
	Charging Protection		Automatic detection, charging and discharge protection, intelligent management
Display	Display Mode		LCD
	Display Information		Input voltage, output voltage, output frequency, battery capacity, load condition, status information
Intelligent Control			With auto switch charger
Output Waveform			Pure sine wave, THD≤3
Transfer Efficiency			≥93%
Overload Capacity			Over 120% load auto off in 60 seconds, Over 130% load auto off in 10 seconds
Transfer Time			The mains supply switch to inverter output time: ≤5ms
			Switch from inverter to mains supply time: ≤5ms
Protection Function			Overload,short-circuit,over-voltage,low-voltage,overtemperature, reverse polarity protection
Working Condition		Temperature	-10℃～60℃
		Humidity	10%～90%
		Altitude	≤4000m
Size			335 x 165 x 375mm
Weight			16Kg

Features

1.High-end chip,high-performance CPU,improve the working reliability.
2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse polarity protection.
3.Sound alarm,with frequency-conversion cooling fan.
4.Soft-start function,increase loading capacity.

Application

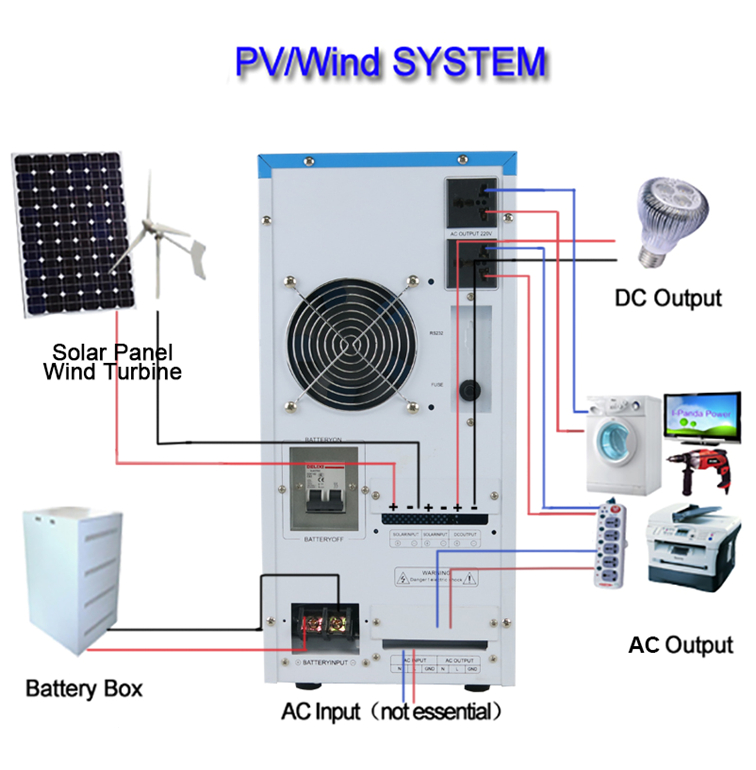

Can be widely used for solar energy,wind energy,ship,satcom equip communication,water pump,microwave oven,squeezer,air-condition,fridge,mower,soybean milk maker,etc.
