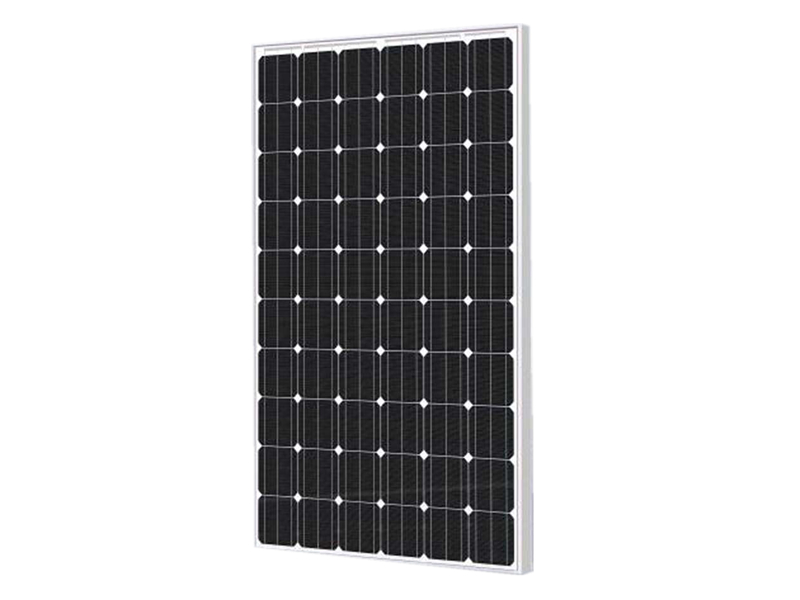

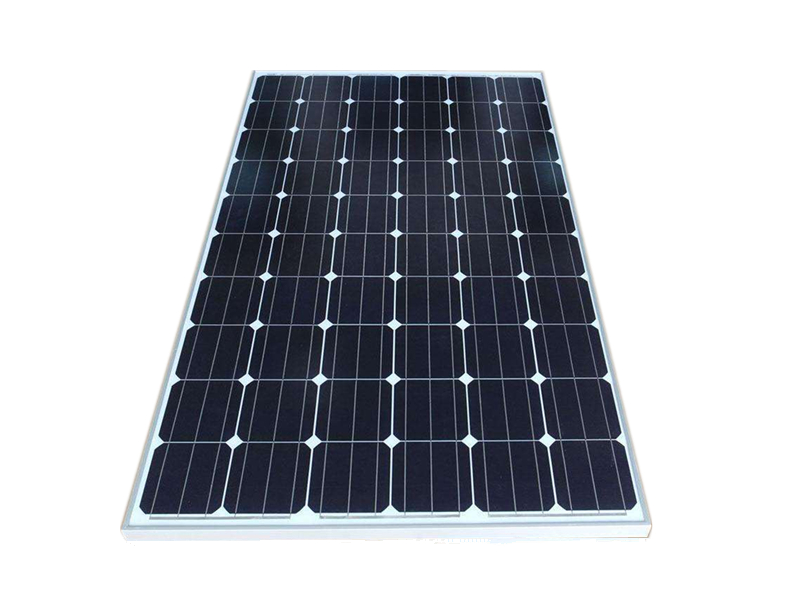

250W Monocrystalline Solar Panel
Name :
250W Monocrystalline Solar Panel
Color:
Black
Size:
1620 x 985 x 50mm
Material:
Monocrystalline Silicon
Specification
|
Model |
SK-MONO-TG250W |
|
Maximum Power(Pm) |
250W |
|
Optimum Operating Voltage(Vmp) |
30V |
|
Optimum Operating Current(Imp) |
8.17A |
|
Open Circuit Voltage(Voc) |
36.8V |
|
Short Circuit Current(Isc) |
8.47A |
|
Maximum System Voltage |
1000V DC |
|
Module Efficiency |
15% |
|
Power Tolerance |
±3% |
|
NOCT |
47℃±2℃ |
|
Temperature Coefficients of Isc(%)℃ |
+0.06 |
|
Temperature Coefficients of Voc(%)℃ |
-0.34 |
|
Temperature Coefficients of Pm(%)℃ |
-0.42 |
|
Temperature Coefficients of Im(%)℃ |
+0.06 |
|
Temperature Coefficients of Vm(%)℃ |
-0.34 |
|
Solar Cell |
Monocrystalline silicon |
|
Working Temperature |
-40℃~+85℃ |
|
Surface Maximum Load Capacity |
2400-5400Pa |
|
Size |
1620 x 985 x 50mm |
|
Weight |
21.5Kg |
|
Packing |
Neutral packing |
|
Warranty |
25 Years |
|
Certification |
CE and RoHS |
Features
1.High efficiency solar cells with high transmission and textured glass are delivering high efficiency for modules.
2.Excellent weak light performance.
3.Tempered glass,EVA resin,weatherproof film,aluminum frame for extended outdoor use.
4.Withstand high wind and snow loads.
Application

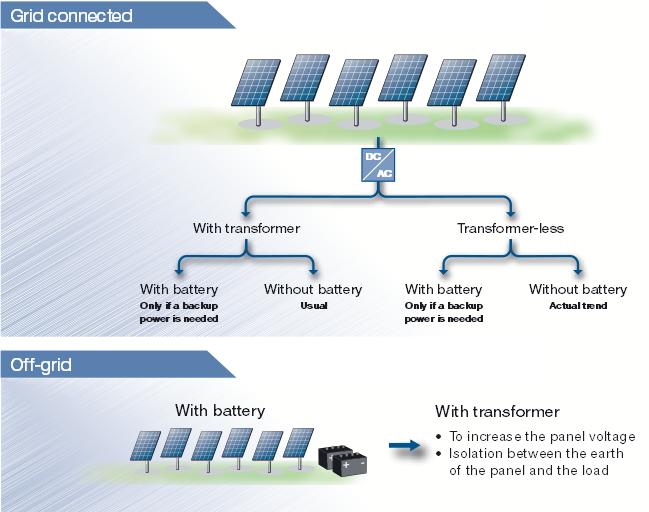

Can be widely used for on grid residential roof-tops,on grid commercial / industrial roof-tops,solar power station,off grid solar power system,on grid solar power system,etc.
