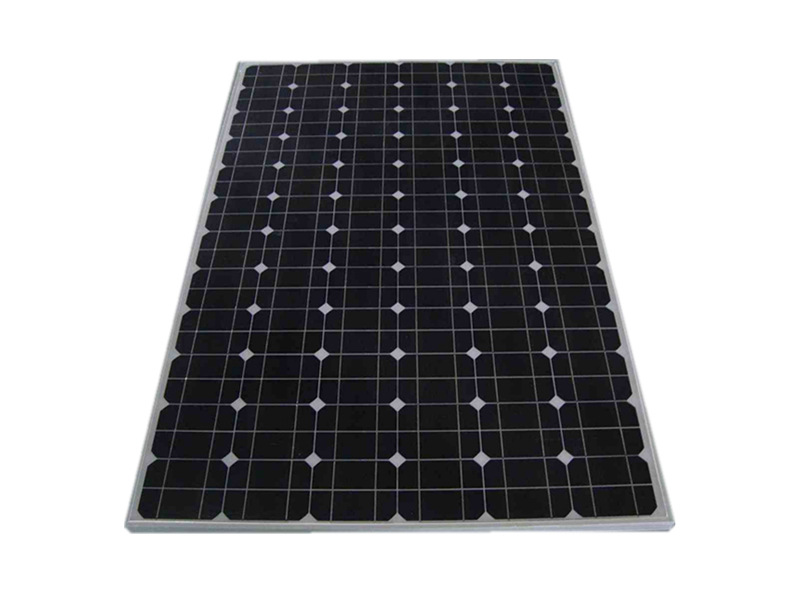

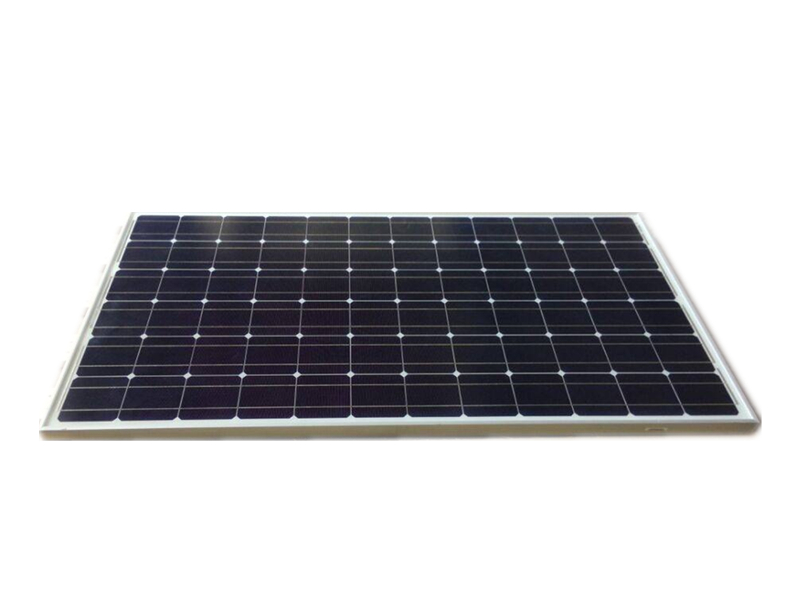

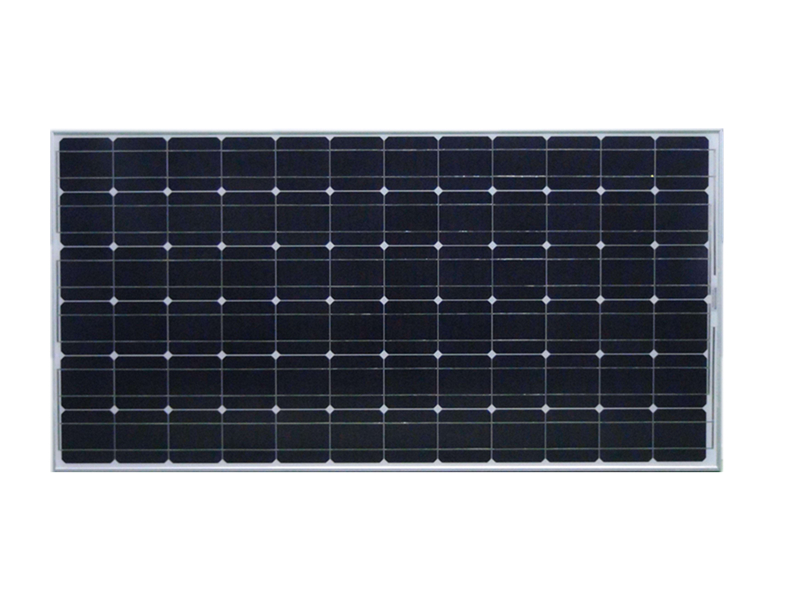

200W Monocrystalline Solar Panel

Products » Solar Panel » Monocrystalline

  • Name :

    200W Monocrystalline Solar Panel

  • Color:

    Black

  • Size:

    1580 x 800 x 50mm

  • Material:

    Monocrystalline Silicon

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-MONO-TG200W

    Maximum Power(Pm)

    200W

    Optimum Operating Voltage(Vmp)

    30V

    Optimum Operating Current(Imp)

    8.33A

    Open Circuit Voltage(Voc)

    43.2V

    Short Circuit Current(Isc)

    9.16A

    Maximum System Voltage

    1000V DC

    Module Efficiency

    15%

    Power Tolerance

    ±3%

    NOCT

    47±2

    Temperature Coefficients of Isc(%)

    +0.06

    Temperature Coefficients of Voc(%)

    -0.34

    Temperature Coefficients of Pm(%)

    -0.42

    Temperature Coefficients of Im(%)

    +0.06

    Temperature Coefficients of Vm(%)

    -0.34

    Solar Cell

    Monocrystalline silicon

    Working Temperature

    -40℃~+85

    Surface Maximum Load Capacity

    2400-5400Pa

    Size

    1580 x 800 x 50mm

    Weight

    16.5Kg

    Packing

    Neutral packing

    Warranty

    25 Years

    Certification

    CE and RoHS


    Features

    1.High efficiency solar cells with high transmission and textured glass are delivering high efficiency for modules.

    2.Excellent weak light performance.

    3.Tempered glass,EVA resin,weatherproof film,aluminum frame for extended outdoor use.

    4.Withstand high wind and snow loads.


    Application

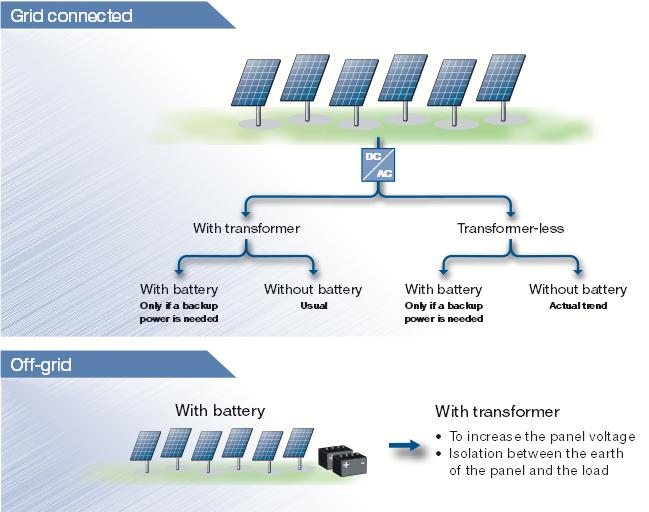

    Can be widely used for on grid residential roof-tops,on grid commercial / industrial roof-tops,solar power station,off grid solar power system,on grid solar power system,etc.
