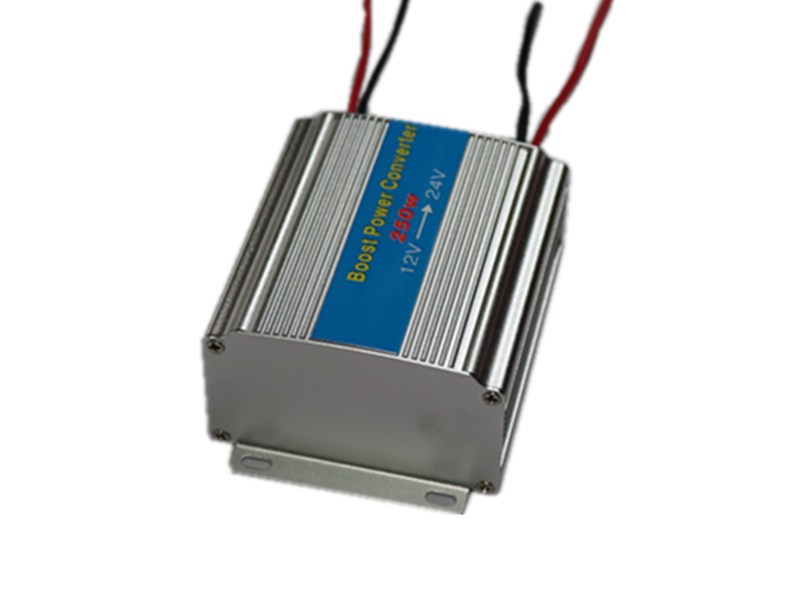

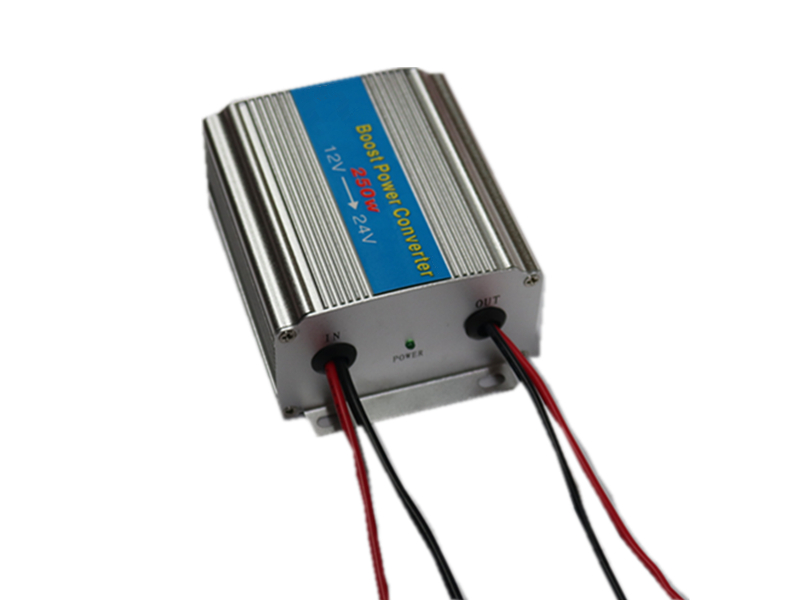

Model

SK-250W-12V-24V

Input Voltage

DC10V-16V

Output Voltage

DC24V±3%

Max Output Current

10A

Rated Power

250W

Max Power

300W

Transfer Efficiency

>90%

Quiescent Current

<100mA

Working Temperature

-20~+55℃

Size

117 x 87 x 52mm

Weight

0.5Kg

Packing

Neutral packing

Warranty

2 Years

Certification

CE and RoHS

Features

1.High-end integrated switching regulator module manufacturing.

2.Over-voltage,under-voltage,over temperature,short circuit protection.

3.Auto cool,IP40.

4.Aluminum alloy shell,heat eliminable.

Application

Can be widely used for car,bus,truck,interphone,FM audio system,surveillance system,etc.
