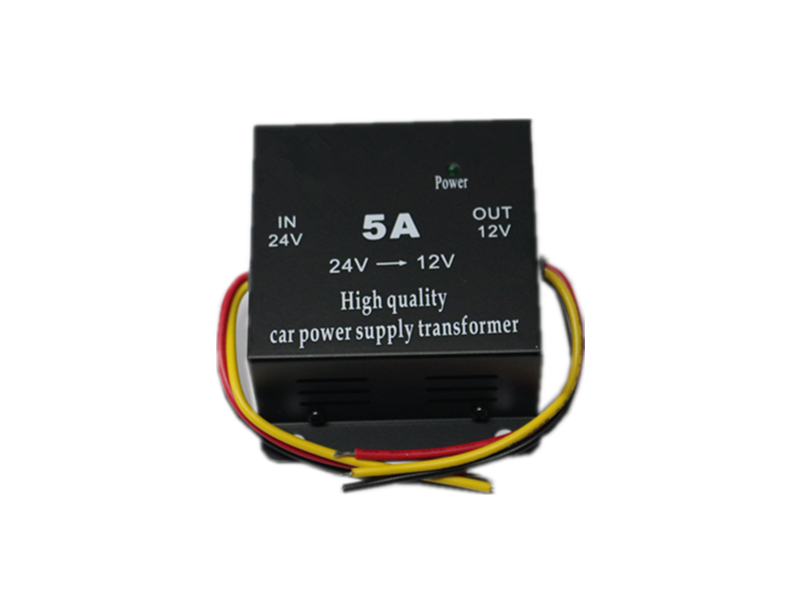

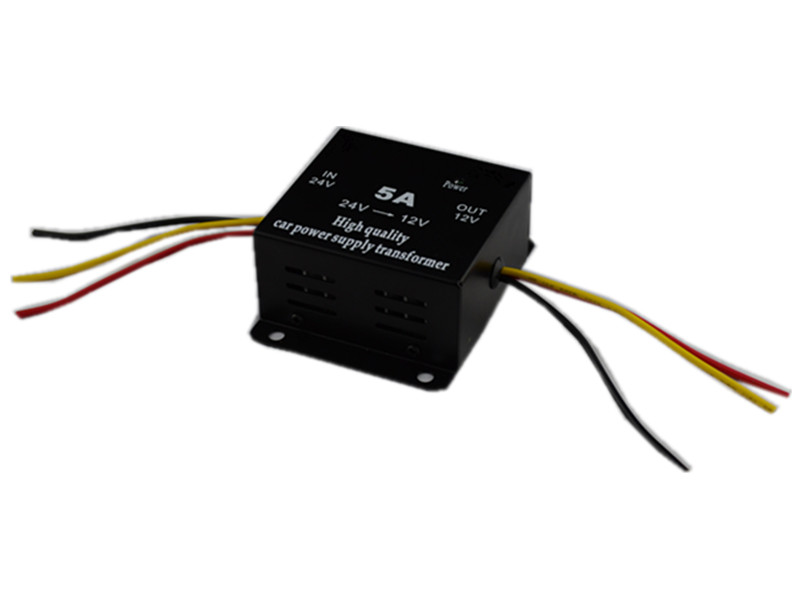

Model

SK-5A-24V-12V

Input Voltage

DC13V-40V

Output Voltage

DC12V±10%

Output Current

5A

Transfer Efficiency

≥95%

Rated Power

60W

Max Power

70W

Working Temperature

-20~80℃

Temperature Protection

80℃±10%

Static current

<20mA

Size

78 x 99 x 40mm

Weight

0.35Kg

Packing

Neutral packing

Warranty

2 Years

Certification

CE

Features

1.High-end integrated switching regulator module manufacturing.

2.Overvoltage,overcurrent,over temperature,short circuit protection.

Application

Can be widely used for car,bus,truck,interphone,FM audio system,surveillance system,etc.
