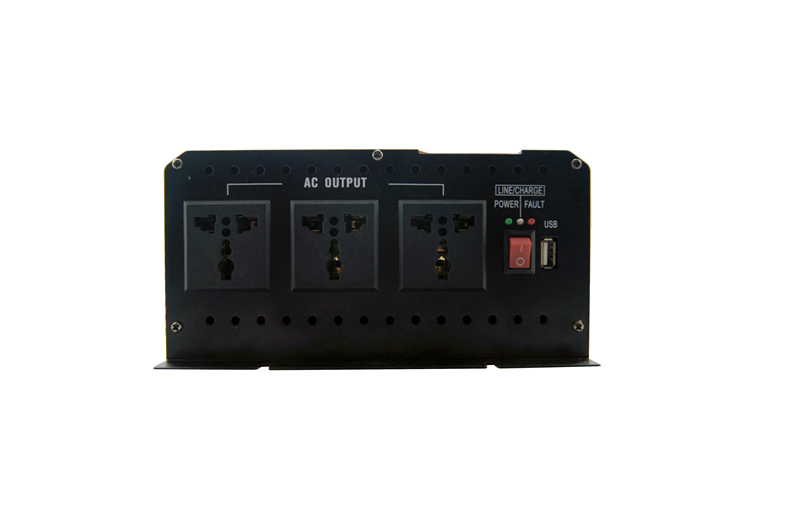

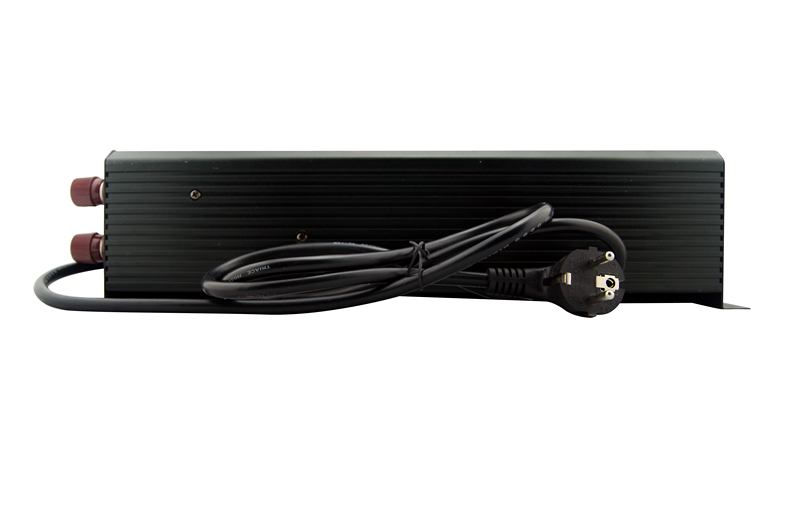

24V 2000W Modified Sine Wave Inverter With Charger

Products » Inverter With Charger » 24V Inverter

Name :

24V 2000W Modified Sine Wave Inverter With Charger

Color:

Black

Size:

423 x 200 x 100mm

Material:

Aluminum alloy shell

[ Close ]

Description:

Specification

Model		SK-2000W Series
Rated Power		2000W
Continuous Power		2000W
Peak Power		4000W
DC Input Section	DC Input Voltage	12V	24V
	DC Operating Voltage	11-15V	21-29V
	DC Low-voltage Protection	9-10.5V	18.5-20.5V
	DC Low-voltage Alarm	9.5-11V	19.5-21V
	DC Over-voltage Protection	≥15V	≥29V
	Fuse	40A*2	20A*4
	Quiescent Current	≤1.6A	≤1.6A
AC Input Section	AC Input Voltage	220V
	AC Input Frequency	50Hz-60Hz
	AC Operating Voltage	170V-250V
	AC Low-voltage Protection	≤150V
	AC Over-voltage Protection	≥250V
	AC Input Fuse	10A
	Charge Mode	Intelligent Positive and Negative Pulse Charge
	Charge Process	Precharge, Main Charge, Floating Charge,Full Charge
	Charge Current	20A
	Charge Voltage	29V-32V
AC Output Section	Output Waveform	Modified Sine Wave
	Output Voltage	220V±10%
	Output Frequency	50Hz-60Hz
Transfer Efficiency		≥90%
USB Output Voltage		DC 5V(500mA)
Overload Protection		2000W--2400W
Cooling Type		By Smart Cooling Fan
DC to AC Inverting Household Time		≤10ms
Household Supply Inverting to DC time		≤10ms
DC to AC Inverting Household Term		In AC InputNormalVoltage
Household Supply Inverting to DC Term		No Electric Supply, AC Low-voltage,Over-voltage Protection
Short-circuit Protection		Yes
Operating Temperature		-10℃--+50℃
Temperature Protection		+60℃--+70℃
Green LED Indicator		Green Light(Working)
Red LED Indicator		Red Light(Charging)
Size		423 x 200 x 100mm
Weight		6.8Kg

Features

1.High-end chip,high-performance CPU,improve the working reliability.
2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse polarity protection.
3.Sound alarm,with smart cooling fan,with USB outlet.
4.Soft-start function,increase loading capacity.
5.Aluminum alloy shell,Heat eliminable.

Application

Can be widely used for solar energy,wind energy,car,camera,fan,hair dryer,electric light,electric kettle,electric shaver,TV set,CD player,mobile phone,laptop,portable device,etc.
