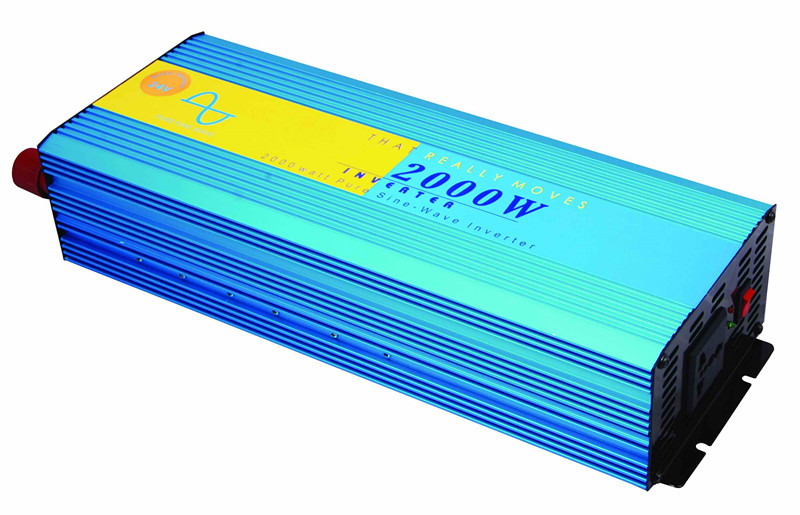

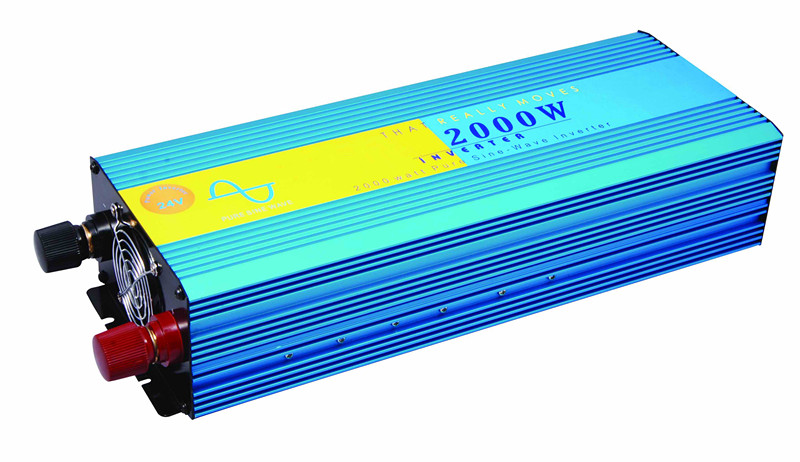

12V 2000W Pure Sine Wave Inverter

Products » Pure Sine Wave Inverter » 12V Inverter

  • Name :

    12V 2000W Pure Sine Wave Inverter

  • Color:

    Blue

  • Size:

    435 x 150 x 90mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-2000W Series

    Rated Power

    2000W

    Continuous Power

    2000W

    Peak Power

    4000W

      Input Section

    DC Input Voltage

    12V

    24V

    DC Operating Voltage

    11-15V

    21-29V

    DC Low Voltage Protection

    9-11V

    19-21V

    DC Low Voltage Alarm

    9-11V

    19-21V

    DC Over Voltage Protection

    ≥15V

    ≥29V

    Fuse

    30A*8

    20A*6

    Quiescent Current

    ≤0.5A

    ≤0.25A

    Output Section

    Output Waveform

    Pure Sine Wave

    Output Voltage

    220V-240V

    Output Frequency

    50Hz±1%

    Transfer Efficiency

    ≥93%

    Over Load Protection

    Yes

    Short Circuit Protection

    Yes

    Cooling Type

    By Cooling Fan

    Operating Temperature

    -10--+50

    Temperature Protection

    70

    Green LED Indicator

    Green Light (Working)

    Red LED Indicator

    Red Light (Error Protection)

    Size

    435 x 150 x 90mm

    Weight

    5.2Kg


    Features

    1. High-end chip, high-performance CPU, improve the working reliability.
    2. Over voltage, low voltage, over temperature, over load, short circuit, reverse connect protection.
    3. Sound alarm, with cooling fan.
    4. Soft start function, increase loading capacity.
    5. Aluminum alloy shell, heat eliminable.


    Application

    Can be widely used for solar energy system, wind energy system, fridge, refrigerator, air-condition, water pump, motor, car, LED light, camera, fan, hair dryer, electric light, electric kettle, TV set, CD player, mobile phone, laptop, portable device, etc.
