Specification

Features

1.CPU controlled with PWM function: able to adjust the charge current and decide if to supply the loads electricity according to the voltage of battery.

2.Compensation charging: according to various system temperatures, the controller will automatically compensate the temperature of the charging voltage.

3.LCD monitor: showing the charging current, battery voltage, environment temperature and real-time data of the charging process.

4.Temperature sensor: probing the temperature of environment and indicating the degree of charging.

5.Automatic Identification System Voltage,12V/24V auto recognition.

6.Completed technical data for setup and modify.

8.Discharge Counter of Ampere Hour.

9.Working Storage Function: record the total run time of system, record timers of error during running time,record times of full charged battery.

10.Over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.

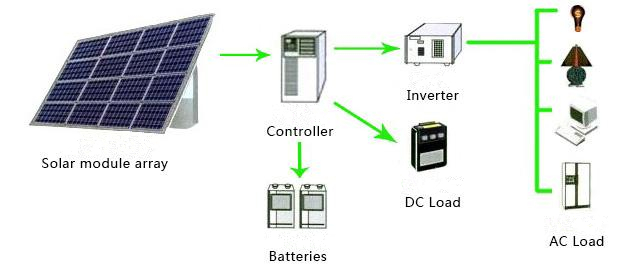

Application

Can be widely used for off grid solar system,telecommunication base station,household system, street lighting system,field monitoring system,etc.
