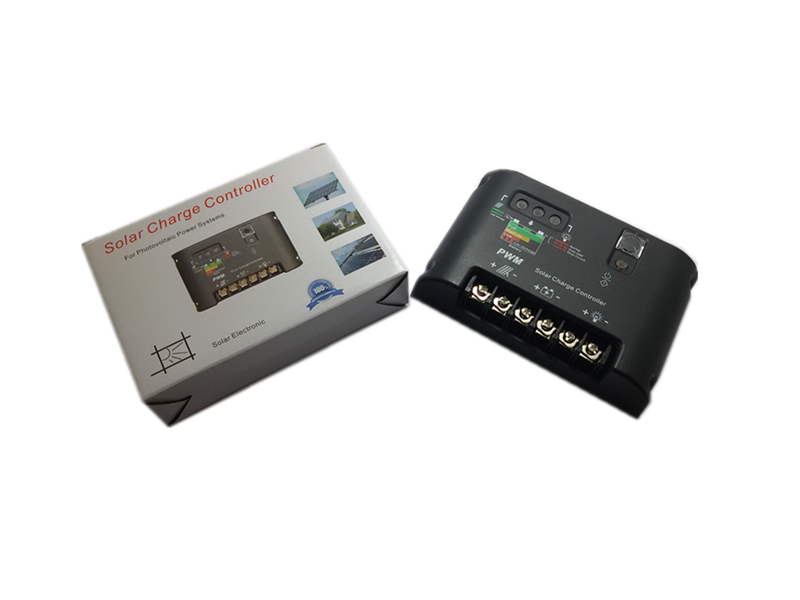

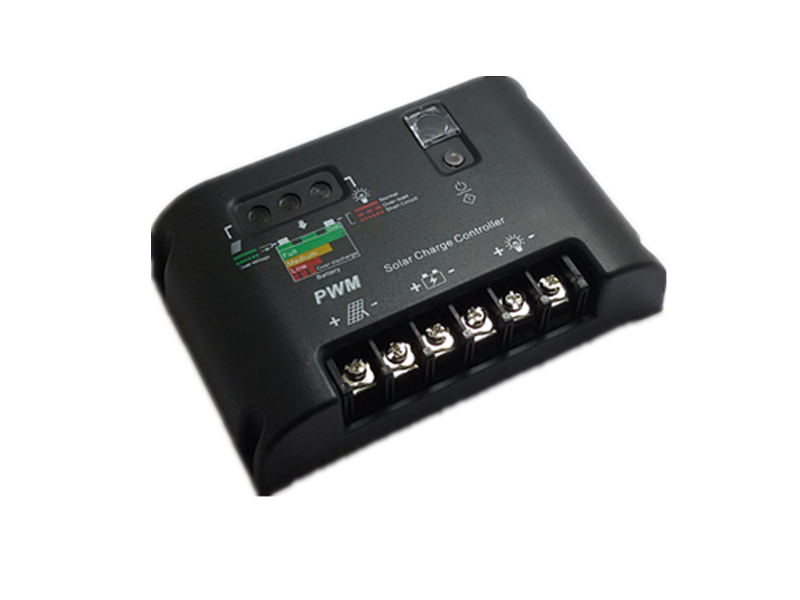

30A PWM Charge Controller 12V/24V

Products » Solar Charge Controller » PWM Charge Controller

  • Name :

    30A PWM Charge Controller 12V/24V

  • Color:

    Black

  • Size:

    140 x 90 x 38mm

  • Material:

    Plastic shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-PWM-I30A-1224

    SK-PWM-I40A-1224

    Rated Voltage

    DC12V/24V auto recognition

    Charge Current

    30A

    40A

    Discharge Current

    30A

    40A

    Max Solar Input

    36V

    Charge Drop

    <0.2V

    Discharge Drop

    <0.25V

    Equalization

    14.8V / 29.6V

    Bulk

    14.5V / 29.0V

    Acceptance

    14.2V(PWM) / 28.4V(PWM)

    Float

    13.8V / 27.6V

    Charge Reconnect

    13.0V / 26.0V

    Discharge Stop

    11.2V / 22.4V

    Discharge Reconnect

    12.6V / 25.2V

    Self-consume

    <10mA

    Voltage Of Open Light

    Solar panel 8V / 16Vdelay 10s

    Voltage Of Close Light

    Solar panel 8V / 16Vdelay 60s

    Temperature Compensation

    N/C

    Operating Temperature

    -35~+60

    Size

    140 x 90 x 38mm

    Weight

    0.4Kg































    Features

    1.CPU controlled with PWM function: able to adjust the charge current and decide if to supply the loads electricity according to the voltage of battery.

    2.Compensation charging: according to various system temperatures, the controller will automatically compensate the temperature of the charging voltage.

    3.LCD monitor: showing the charging current,battery voltage.

    4.Temperature sensor: probing the temperature of environment and indicating the degree of charging.

    5.Automatic Identification System Voltage,12V/24V auto recognition.

    6.Completed technical data for setup and modify.

    7.Discharge capacity control.

    8.Discharge Counter of Ampere Hour.

    9.Over voltage protection, short circuit protection, over load protection, overcharge protection, over-discharge protection.

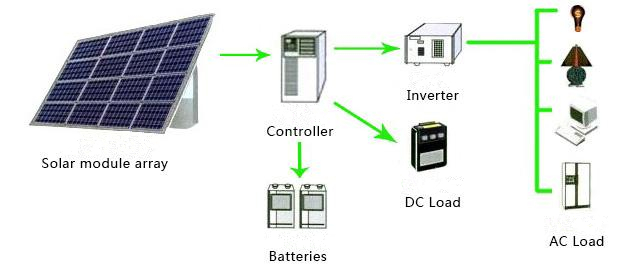

    Application

    Can be widely used for off grid solar system,telecommunication base station,household system, street lighting system,field monitoring system,etc.
