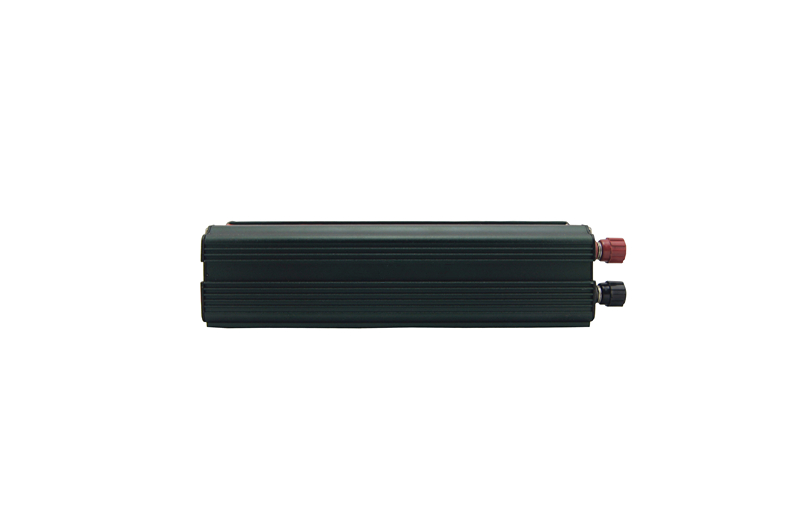

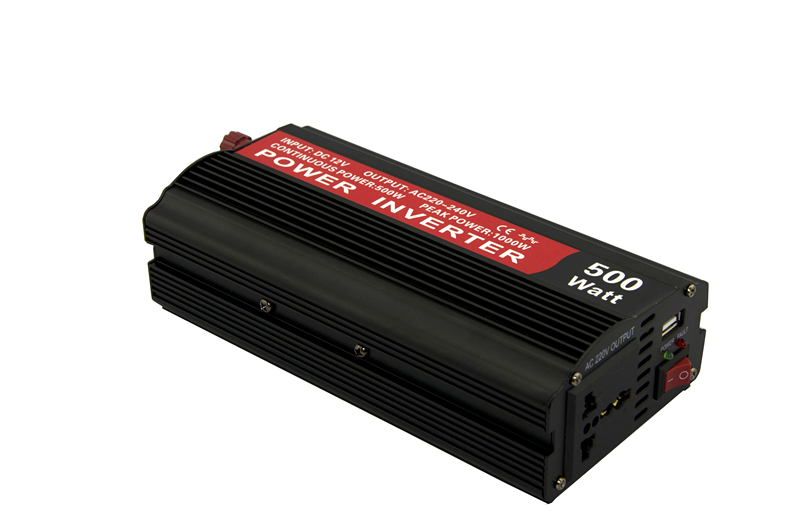

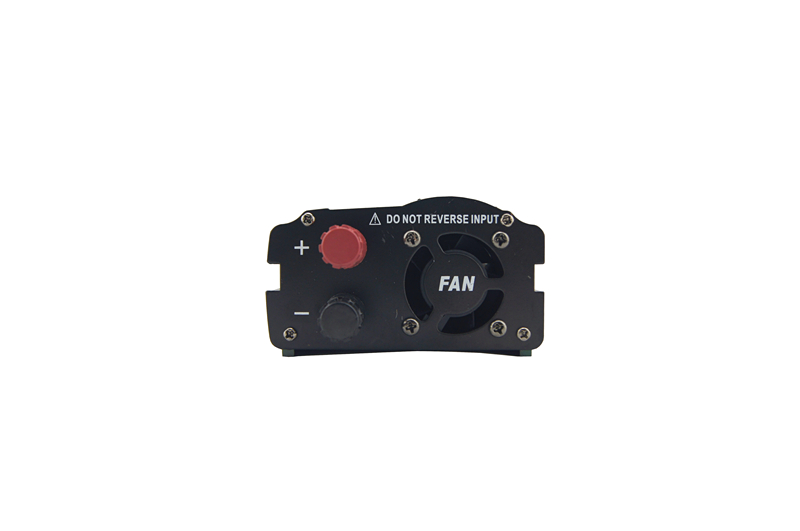

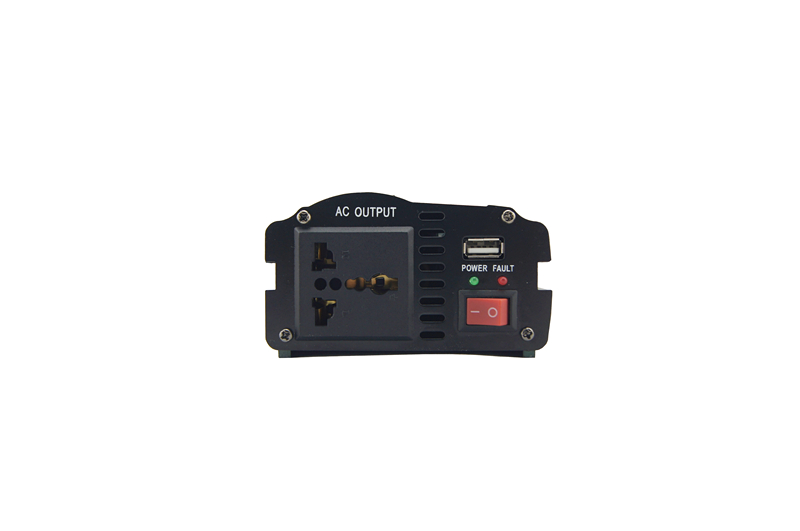

12V 500W Car Inverter(Modified Sine Wave Inverter)

Products » Car Inverter » 12V Inverter

  • Name :

    12V 500W Car Inverter(Modified Sine Wave Inverter)

  • Color:

    Black

  • Size:

    235 x 102 x 58mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SK-500W Series

    Rated Power

    500W

    Continuous Power

    500W

    Peak Power

    1000W

    Input Section

    DC Input Voltage

    12V

    24V

    48V

    DC Operating Voltage

    11-15V

    21-29V

    40-60V

    DC Low-voltage Protection

    9-10.5V

    18.5-20.5V

    39-40V

    DC Low-voltage Alarm

    9.5-11V

    19.5-21V

    39-41V

    DC Over-voltage Protection

    ≥15V

    ≥29V

    ≥60V

    Fuse

    40A*1

    20A*2

    10A*3

    Quiescent Current

    ≤0.5A

    ≤0.5A

    ≤0.5A

    Output Section

    Output Waveform

    Modified Sine Wave

    Output Voltage

    220V±10%

    Output Frequency

    50Hz-60Hz

    Transfer Efficiency

    ≥90%

    USB Output Voltage

                               DC 5V(800mA)

    Overload Protection

    500W--600W

    Short-circuit Protection

    Yes

    Cooling Type

    By Smart Cooling Fan

    Operating Temperature

    -10--+50

    Temperature Protection

    +60--+70

    Green LED Indicator

    Green Light(Working),Flash(Overload Protection)

    Red LED Indicator

    Red Light(Error Protection)

    Size

    235 x 102 x 58mm

    Weight

    1.2Kg


    Features

    1.High-end chip,high-performance CPU,improve the working reliability.
    2.Overvoltage,low voltage,over temperature,overload,short circuit,reverse polarity protection.
    3.Sound alarm,with smart cooling fan,with USB outlet.
    4.Soft-start function,increase loading capacity.
    5.Aluminum alloy shell,Heat eliminable.


    Application

    Can be widely used for solar energy,wind energy,car,camera,fan,hair dryer,electric light,electric kettle,electric shaver,TV set,CD player,mobile phone,laptop,portable device,etc.
