Model

SKA-5A-60V-12V

Input Voltage

DC20V-75V

Output Voltage

DC12V

Output Current

5A

Output Power

60W

Ripple

<40mVp

Static Current

<20mA

Transfer Efficiency

≥95%

Working Temperature

-40~85℃

IP Rating

IP67

Size

74 x 74 x 32mm

Weight

0.3Kg

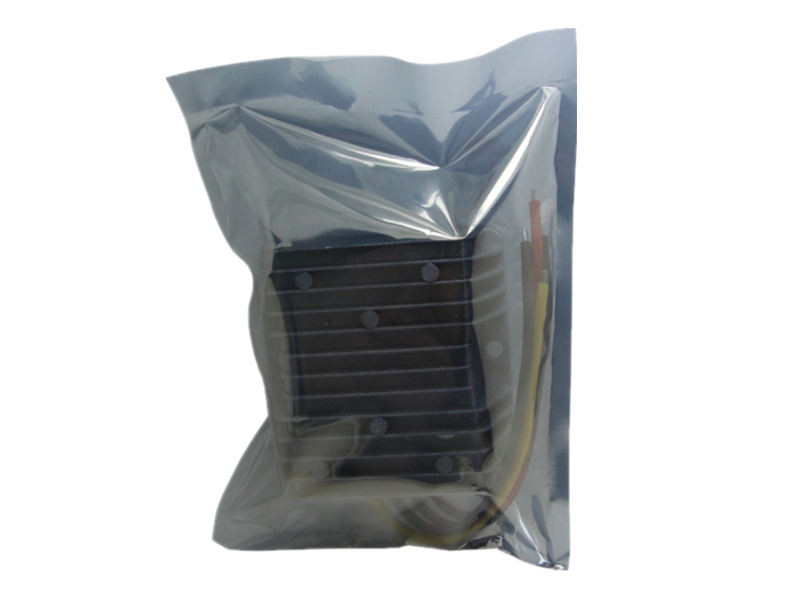

Packing

Neutral packing

Warranty

2 Years

Certification

CE & RoHS

Features

1.High-end integrated switching regulator module manufacturing.

2.Over voltage,over current,over temperature,short circuit protection.

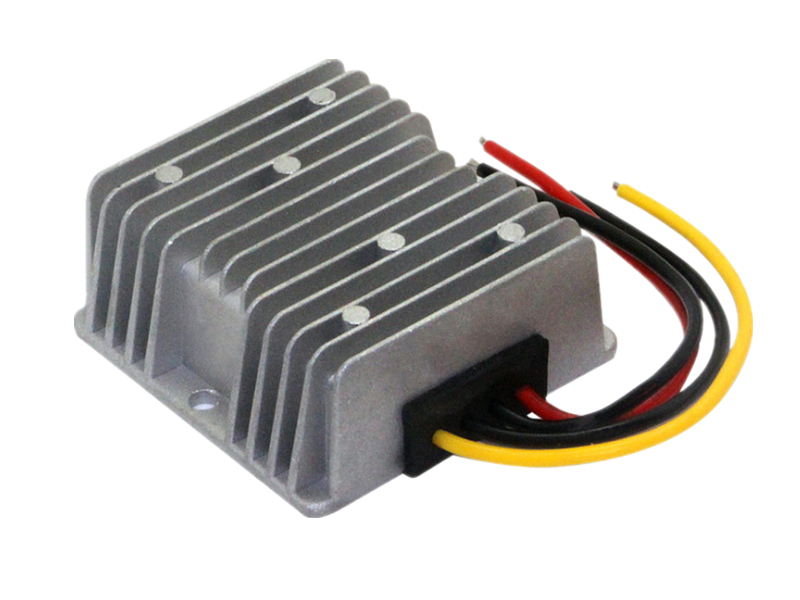

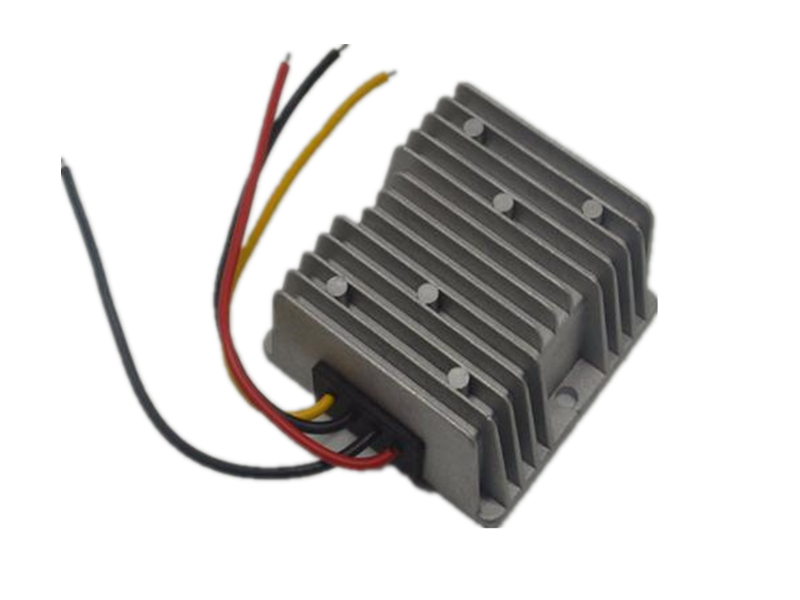

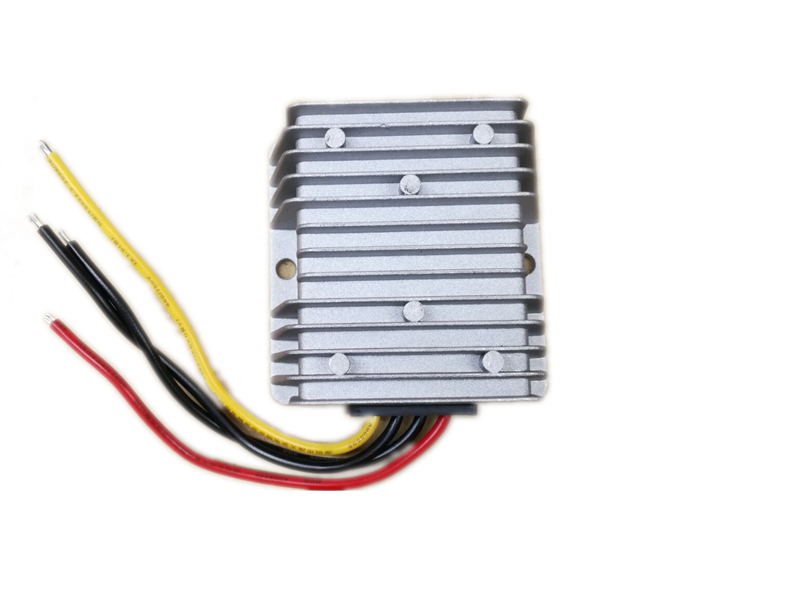

3.Aluminum alloy shell, heat eliminable.

Application

Can be widely used for car,interphone,LED light,FM audio system,surveillance system,etc.
