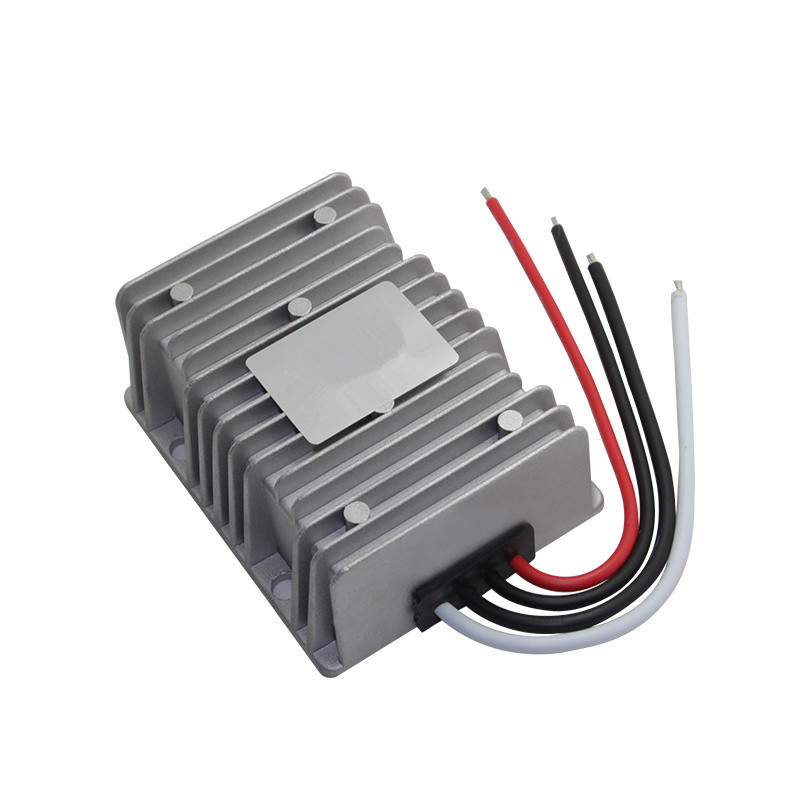

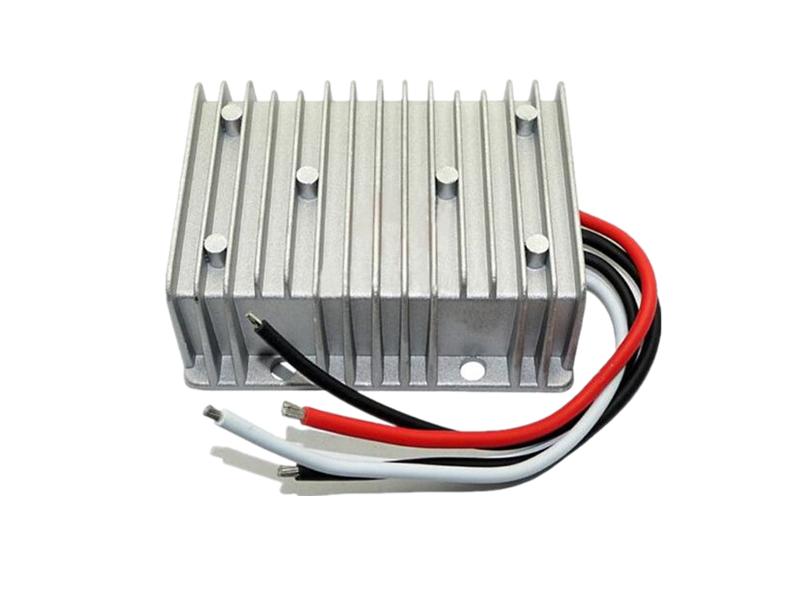

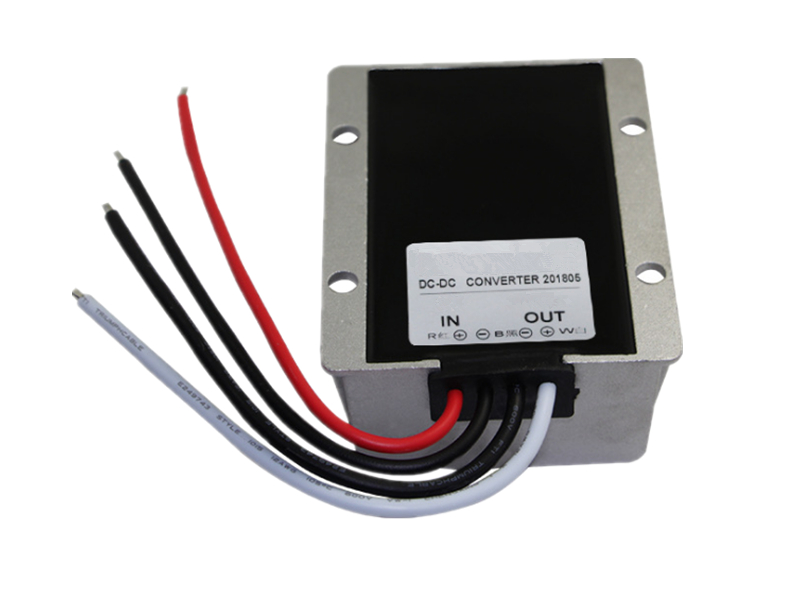

480W 10A DC24V To DC48V Boost Converter

Products » DC To DC Converter » 24V To 48V Converter

  • Name :

    480W 10A DC24V To DC48V Boost Converter

  • Color:

    Silver

  • Size:

    100 x 80 x 39mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SKB-480W-24V-48V

    Input Voltage

    DC18V-32V

    Output Voltage

    DC48V

    Output Current

    10A

    Output Power

    480W

    Ripple

    <170mVp

    Static Current

    <60mA

    Transfer Efficiency

    ≥95%

    Working Temperature

    -30~80

    IP Rating

    IP68

    Size

    100 x 80 x 39mm

    Weight

    0.6Kg

    Packing

    Neutral packing

    Warranty

    2 Years

    Certification

    CE & RoHS

    Features

    1.High-end integrated switching regulator module manufacturing.

    2.Over voltage,over current,over temperature,short circuit protection.

    3.Aluminum alloy shell, heat eliminable.

    Application

    Can be widely used for car,interphone,LED light,FM audio system,surveillance system,etc.
