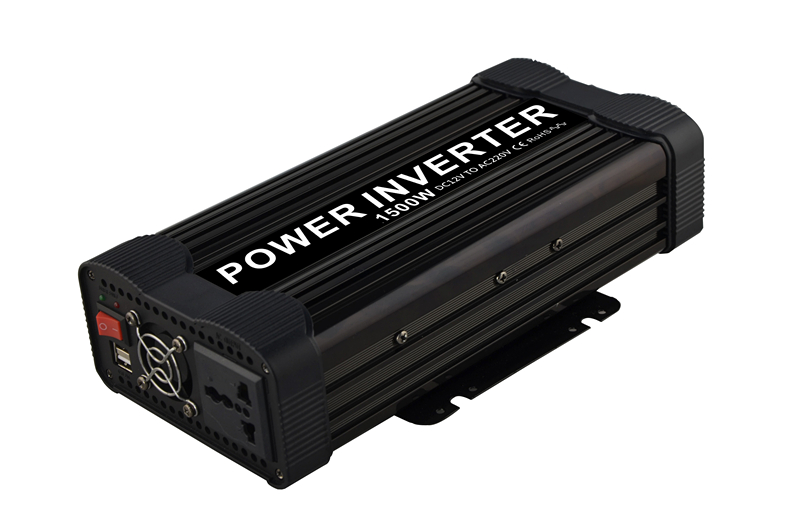

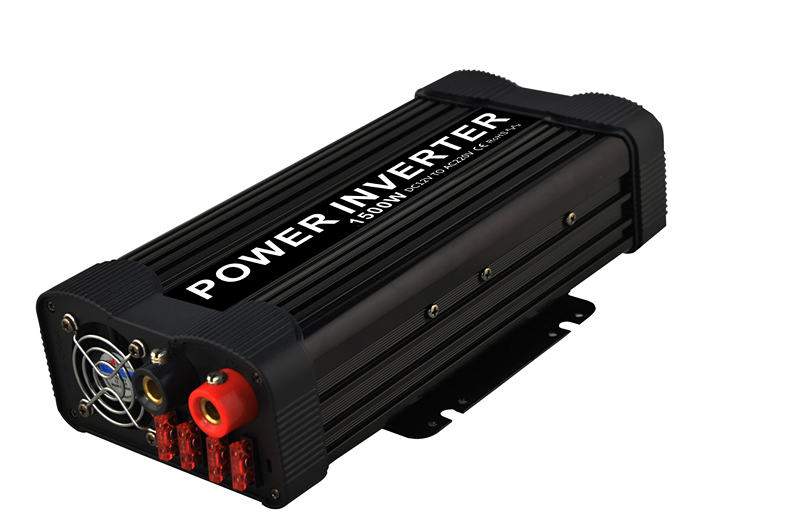

DC24V To AC220V 1500W Modified Sine Wave Inverter

Products » Modified Sine Wave Inverter » 24V Inverter

Name :

DC24V To AC220V 1500W Modified Sine Wave Inverter

Color:

Black

Size:

280 x 144 x 80mm

Material:

Aluminum alloy shell

[ Close ]

Description:

Specification

Model		SKT-1500W-MSW12V	SKT-1500W-MSW24V
Rated Power		1500W
Continuous Power		1500W
Peak Power		3000W
Input Section	DC Input Voltage	12V	24V
	DC Operating Voltage	10-15.5V	20-30V
	DC Low-voltage Protection	9-11V	19-21V
	DC Over-voltage Protection	≥15V	≥30V
	Fuse	40A*4	20A*4
	Quiescent Current	≤0.5A	≤0.25A
Output Section	Output Waveform	Modified Sine Wave
	Output Voltage	220V±10%
	Output Frequency	50Hz-60Hz
Transfer Efficiency		≥90%
USB Output Voltage		DC 5V(Dual USB 2.1A outlet)
Overload Protection		Yes
Short-circuit Protection		Yes
Reverse Connect Protection		Yes(Blown Fuse)
Cooling Type		By Temperature Controlled Cooling Fan
Operating Temperature		0℃~40℃
Temperature Protection		≥70℃
Green LED Indicator		Green Light(Working),Flash(Overload Protection)
Red LED Indicator		Red Light(Error Protection)
Size		280 x 144 x 80mm
Weight		2.3Kg

Features

1.High-end single chip,MCU control.

2.Over voltage,low voltage,over temperature,over load,short circuit,reverse polarity protection.

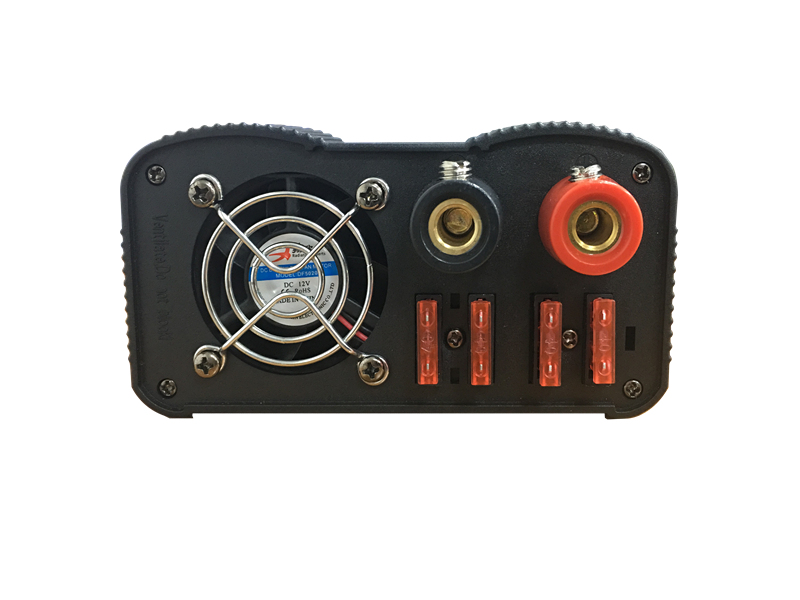

3.External fuse and restart safely.

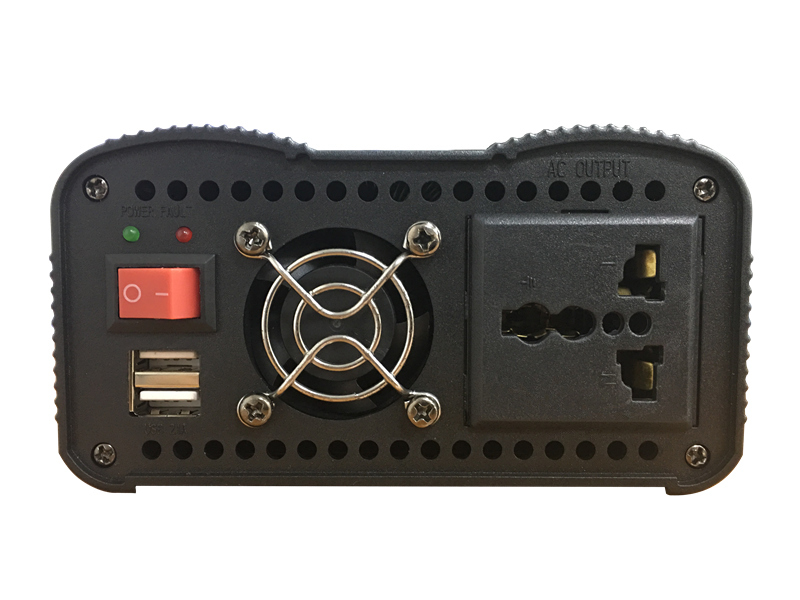

4.Sound alarm,with smart cooling fan,with dual USB 2.1A outlet.

5.Soft-start function,increase loading capacity.

6.Aluminum alloy shell,Heat eliminable.

Application

Can be widely used for solar energy,wind energy,car,camera,fan,hair dryer,electric light,electric kettle,electric shaver,TV set,CD player,mobile phone,laptop,portable device,etc.
