Model

SKC-15A-12V-12V

Input Voltage

DC9V-23V

Output Voltage

DC12V

Output Current

15A

Output Power

180W

Ripple

<40mVp

Static Current

<25mA

Transfer Efficiency

≥95%

Working Temperature

-40~85℃

IP Rating

IP67

Size

100 x 80 x 39mm

Weight

0.6Kg

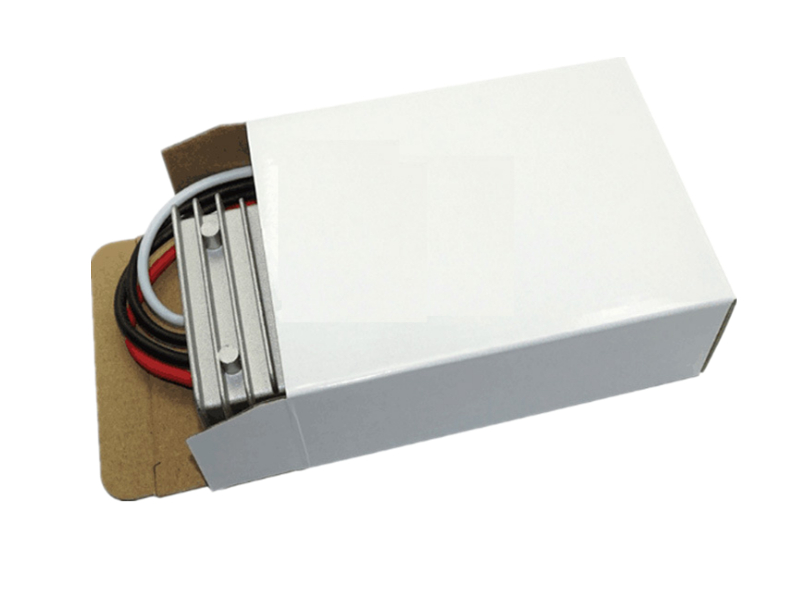

Packing

Neutral packing

Warranty

2 Years

Certification

CE & RoHS

Features

1.High-end integrated switching regulator module manufacturing.

2.Over voltage,over current,over temperature,short circuit protection.

3.Aluminum alloy shell,heat eliminable.

Application

Can be widely used for car,interphone,LED light,FM audio system,surveillance system,etc.
