Model

SKA-30A-48V-24V

Input Voltage

DC30V-60V

Output Voltage

DC24V

Output Current

30A

Output Power

720W

Ripple

<170mVp

Static Current

<60mA

Transfer Efficiency

≥95%

Working Temperature

-30~80℃

IP Rating

IP68

Size

100 x 80 x 39mm

Weight

0.6Kg

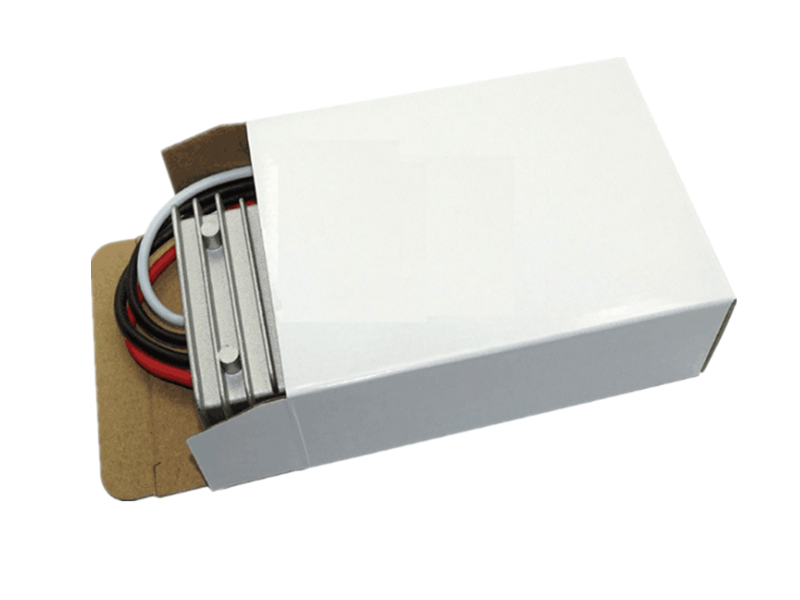

Packing

Neutral packing

Warranty

2 Years

Certification

CE & RoHS

Features

1.High-end integrated switching regulator module manufacturing.

2.Over voltage, over current, over temperature, short circuit protection.

3.Aluminum alloy shell, heat eliminable.

Application

Can be widely used for car, interphone, LED light, FM audio system, surveillance system, etc.
