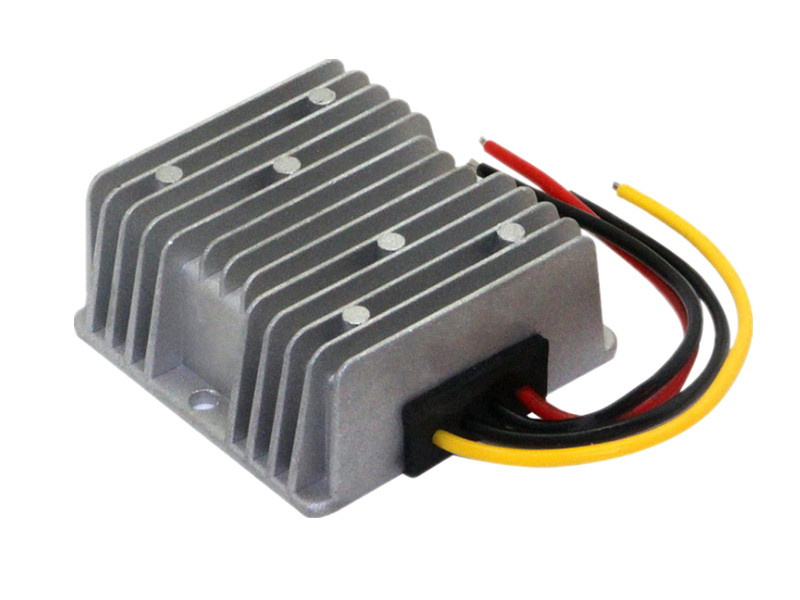

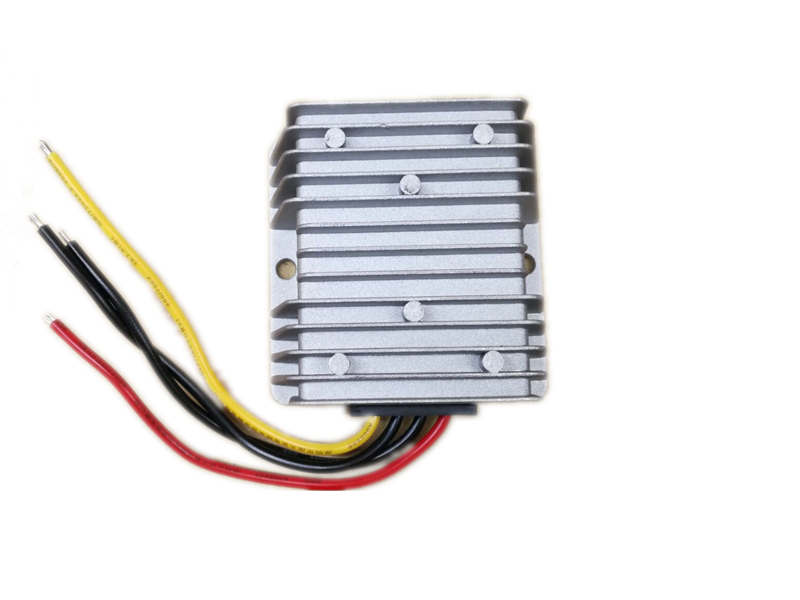

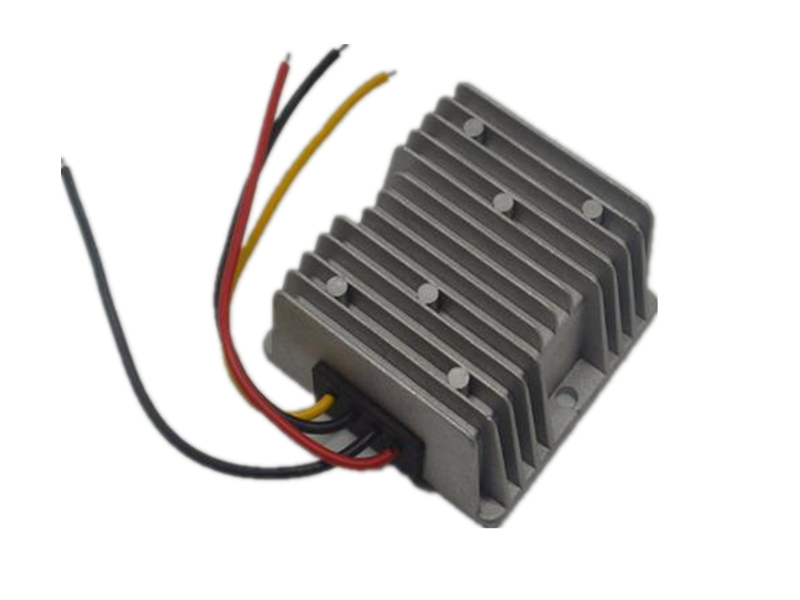

20A DC48V To DC24V Buck Converter

Products » DC To DC Converter » 48V To 24V Converter

  • Name :

    20A DC48V To DC24V Buck Converter

  • Color:

    Silver

  • Size:

    74 x 74 x 32mm

  • Material:

    Aluminum alloy shell

  • [ Close ]
    • *
    • *
    • *
    Description:

    Specification


    Model

    SKA-20A-48V-24V

    Input Voltage

    DC30V-60V

    Output Voltage

    DC24V

    Output Current

    20A

    Output Power

    480W

    Ripple

    <40mVp

    Static Current

    <20mA

    Transfer Efficiency

    ≥95%

    Working Temperature

    -40~85

    IP Rating

    IP67

    Size

    74 x 74 x 32mm

    Weight

    0.3Kg

    Packing

    Neutral packing

    Warranty

    2 Years

    Certification

    CE & RoHS

    Features

    1.High-end integrated switching regulator module manufacturing.

    2.Over voltage, over current, over temperature, short circuit protection.

    3.Aluminum alloy shell, heat eliminable.

    Application

    Can be widely used for car, interphone, LED light, FM audio system, surveillance system, etc.
