Model

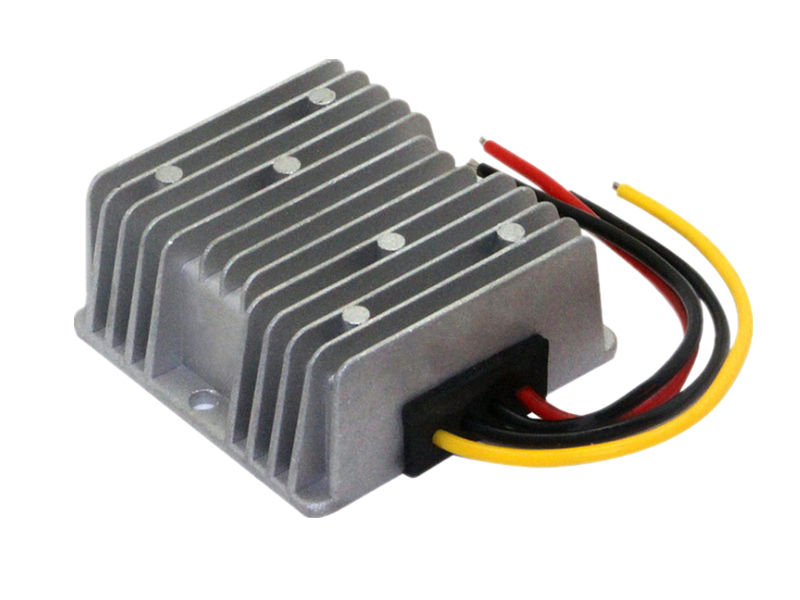

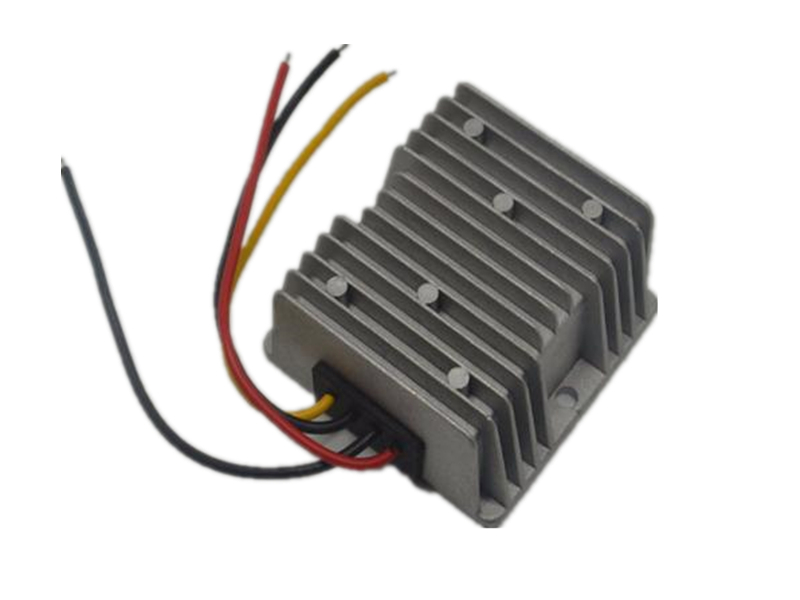

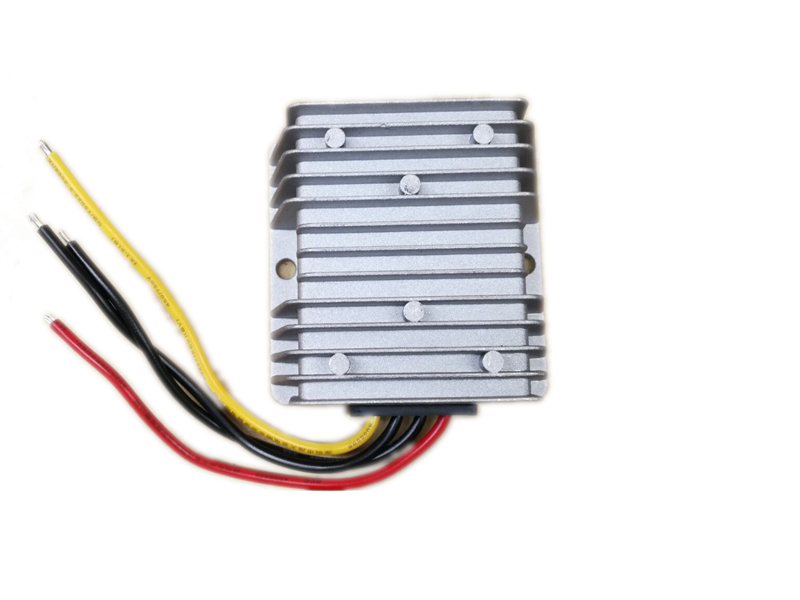

SKD-30A-1224V-5V

Input Voltage

DC8V-40V

Output Voltage

DC5V

Output Current

30A

Output Power

150W

Ripple

<40mVp

Static Current

<17mA

Transfer Efficiency

≥95%

Working Temperature

-40~85℃

IP Rating

IP67

Size

74 x 74 x 32mm

Weight

0.3Kg

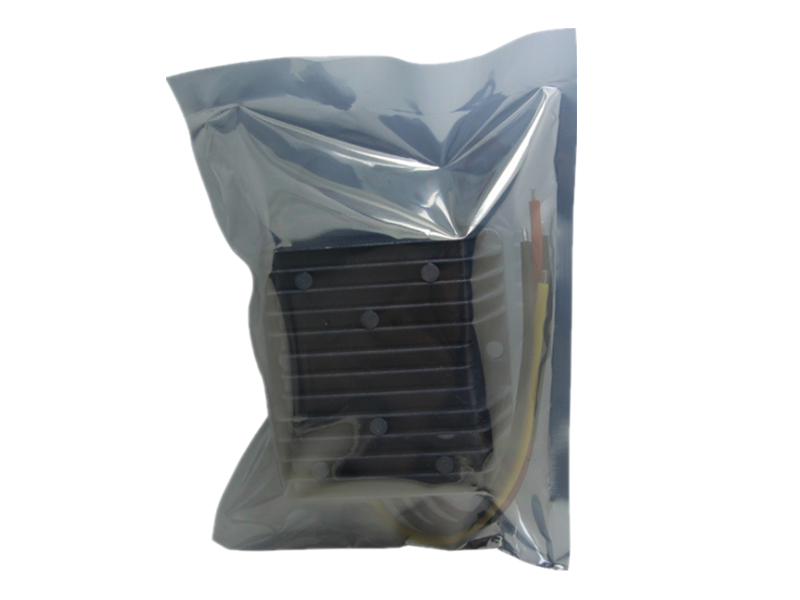

Packing

Neutral packing

Warranty

2 Years

Certification

CE & RoHS

Features

1.High-end integrated switching regulator module manufacturing.

2.Over voltage, over current, over temperature, short circuit protection.

3.Aluminum alloy shell, heat eliminable.

Application

Can be widely used for car, interphone, LED light, FM audio system, surveillance system, etc.
